Rideau Lakes (10 MW) PV Farm 44 kV Substation

Location: Township of Rideau Lakes, Ontario

Owner: Northland Power

Contractor: EPTCON Ltd.

Project Summary

OneLine Engineering provided complete electrical engineering and design services for a 44 kV interconnection substation for a 10 MW PV generating station. The scope of work includes:

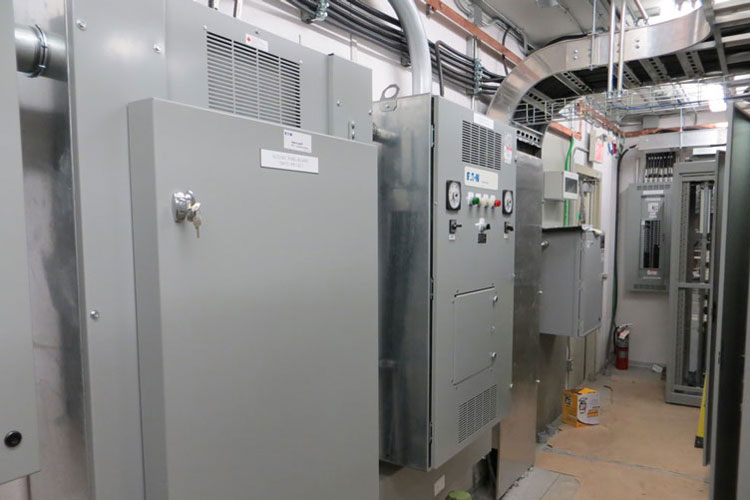

• Design of the protection relaying schemes for the substation, including detailed design of the relay panels and control building
• Design of the station inter-tripping schemes with the remote HONI stations
• Configuration of the protection relays and the RTU
• RTU communications integration with the inverter station master SCADA system
• Design of the cable trenches and duct work
• Design of the ground grid and equipment grounding systems
• Design of the station lighting systems
• Construction and commissioning assistance during system start up
